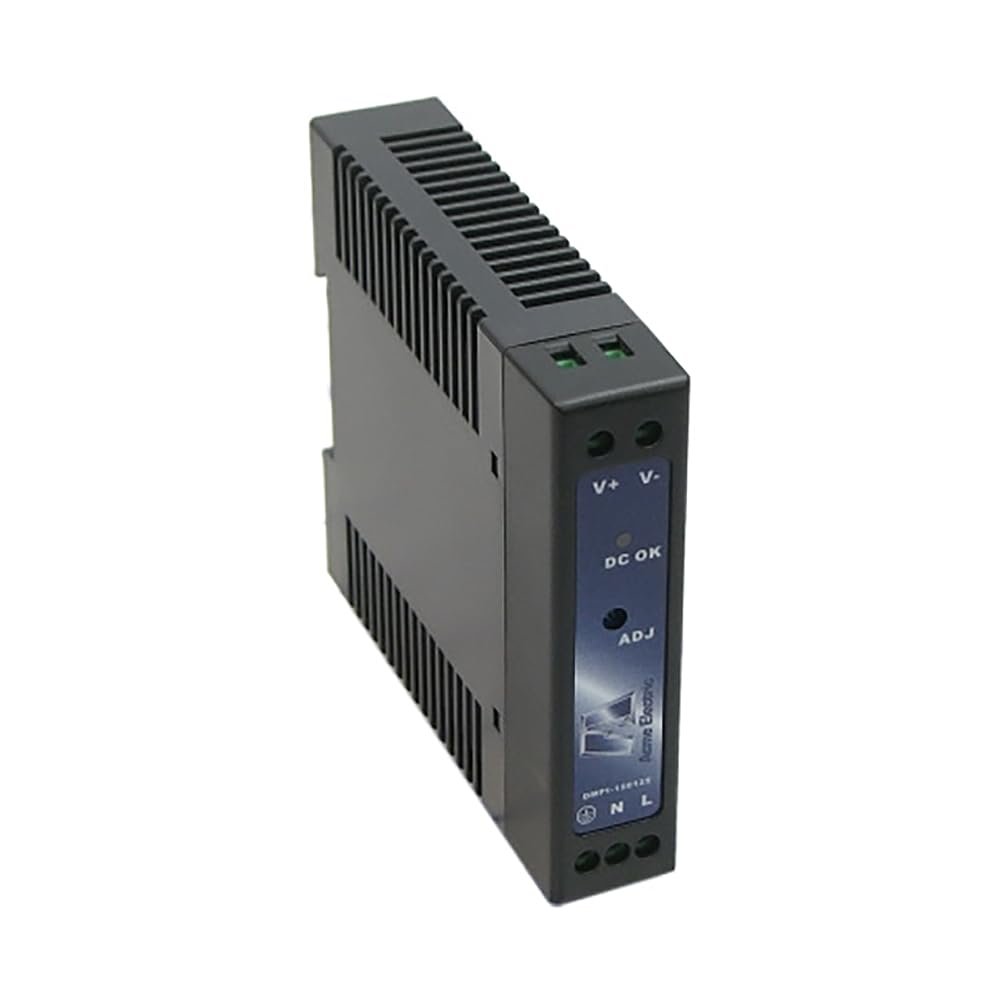

Coolgear Single Phase Din Rail 15 Watt Switching Power Supply

Description

• Slim, Space-Saving Design: Ultra-narrow 23mm profile maximizes DIN Rail real estate in compact enclosures.
• Global Power Compatibility: Universal 90264 VAC input supports 50/60 Hz applications worldwide.
• Reliable Status Monitoring: Built-in DC OK LED provides instant visual output status.
• Safe & Certified: Touch-safe plastic housing meets UL508, CE, and RoHS standards.
• Versatile Industrial Use: Ideal for powering control panels, robotics, conveyors, and automation systems.

This Din Rail 15 Watt switching power supply incorporates a plastic housing with a Din Rail clip mechanism that has a spring like action to secure the power supply to the Din Rail once clipped on. The switching power supply housing is only 23mm thick as it presents with a very narrow, space saving design. The power supply is designed to be terminal powered with its terminal connections on either side of its housing.
The 15 Watt switching power supply is very efficient and lives up to the high demand applications it can be paired with, even those with varying temperature ranges. Applications may include: Industrial networks, Machine control, Process control, Conveyor equipment, robotics, vending equipment, and many others.
Features and Specifications:

Universal input 90-264 VAC, 50/60 Hz without voltage gaps for full product application versatility
Adjustable output voltage compensates for voltage drop
Fully enclosed touch-safe enclosure and terminals
Certified to UL and CE safety standards for use worldwide
UL508 listed for use at full-rated power applications (use w/external diode)
Meets SEMI F47-200
RoHS compliant
Total Power: 15 Watts Max
Input current: < 0.42 Amp
Efficiency: 78%
Output voltage: 12 VDC
Output voltage Adj.: 10-14 VDC
Output current: 1.25 1.07 Amp
Overvoltage protection: Continuous Protection & Auto Recovery (120% - 135%)
Reverse Volt Protection: < 25 V
Operating temperature: -20C to + 60C
Safety Standards: UL508, CE, EN60950-1
Status Indicators: DC OK LED
Connectors: Screw terminal, Input AWG 14-22, Output AWG 12-14
Dimensions: 3.54 (H) x 0.90 (W) x 4.02 (D) / 90mm x 22.8mm x 102mm
