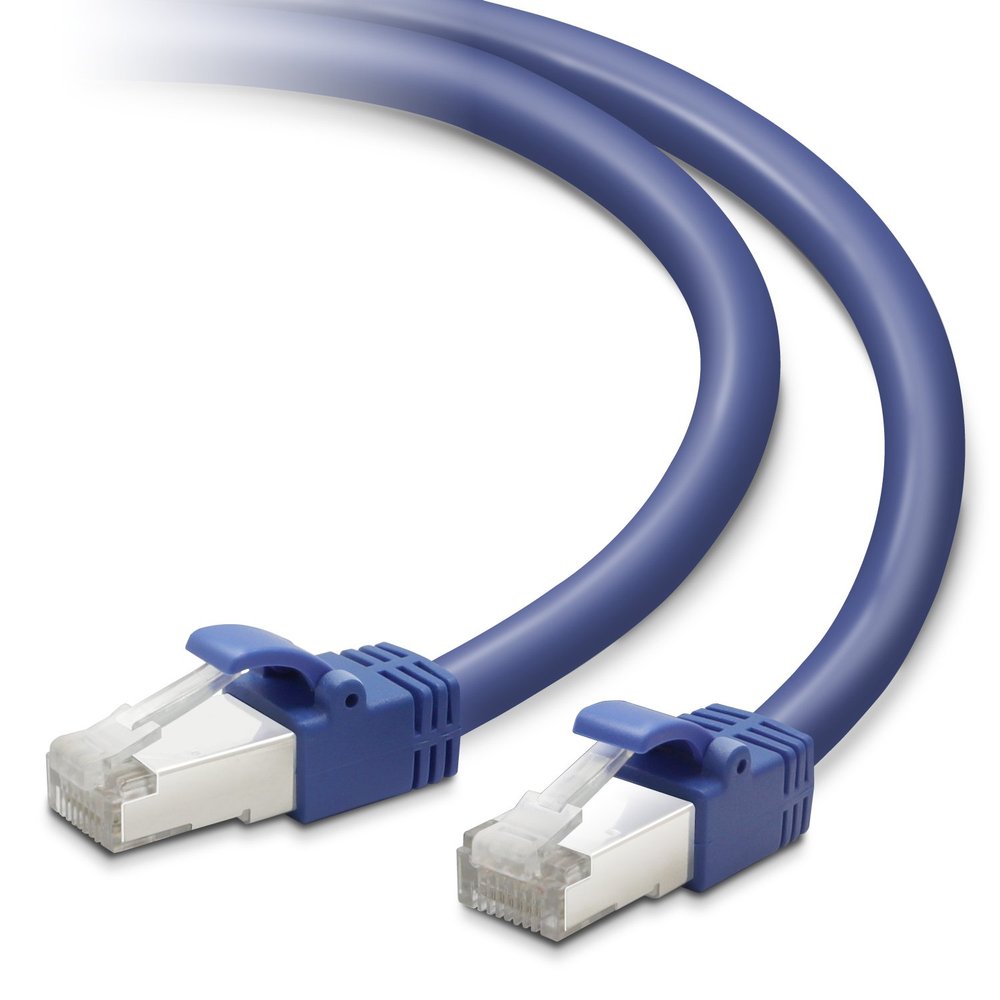

Elecom LD-TWS/BU10 LAN Cable CAT7 32.8 ft (10 m) Anti-Crack Connector Standard Blue

Description

• Cat7 compliant LAN cable with 10 Gigabit Ethernet "10GBASE-T" for high speed optical communication
• It supports high frequency bands up to 600MHz, which is twice as much as Cat6, and is resistant to noise interference, providing a fast, stable network environment
• Ensure stable data transfer rate in 1000BASE-TX/1000BASE-T/100BASE-T environments
• Features a double-shielded construction that prevents communication errors (alien cross talk) caused by noise interference between adjacent cables that tend to be caused by high speed communications over Gigabit
• It has excellent shielding effect, and is suitable for installation in medical facilities, mechanical rooms and OA rooms where EMI measures are required
• The cable shell is made of flame retardant material equivalent to the "JIS C 3005" which is hard to cause burning
• Conforms to ISO/IEC 11801 ClassF Class F (Cat7) compliant only with the cable. This product uses RJ-45 plug
• Environmentally friendly with EU "RoHS Directive (10 Substances)

Specifications:
Color: Blue
Interface: RJ-45 connector
Environmental Consideration: EU RoHS Compliant (10 substances)
Standards: Cat7 compliant (10BASE-T/100BASE-TX/1000BASE-T/1000BASE-TX/10GBASE-T). *Cat7 compliant only cable part. Connectors are RJ-45 specifications.
Transmission speed: 10Gbps
Transmission band: 600MHz
Cable Length: Approx. 32.8 ft (10 m) *Connector not included
Cable Thickness: Approx. 0.3 inches (8.2 mm).
Number of cores: 8 cores
Wiring Method: Straight wire
Yori cores (twisted pair cable): Yes.
Shielding: Yes (ScTP/Double Foil Tape Shield Specification)
Cross materials: x
External Sheath (coating) Material: PVC
With Length Mark: x
Conductor Composition: Iron wire (24AWG)
Connector Included: With connector on both ends
Molded Connector: Yes
Slim Connector: Yes.
Connector with nail breakage prevention cover: Yes.
- Cable winding function: x
Package form: aluminum foil bag + sticker
Non-breaking connector: x
PoE: x

Description
Cat7 compliant LAN cable that supports "10GBASE-T" with 10 Gigabit Ethernet, suitable for high-speed optical communication.
Supports high frequency bands up to 600MHz, which are more than twice the Cat6, and it is resistant to noise interference, providing a fast, stable network environment.
Ensure stable data transfer rate in 1000BASE-TX/1000BASE-T/100BASE-T environments.
Uses a double-shielded structure to prevent communication errors (alien cross talk) caused by noise interference between adjacent cables, which are common in high-speed communications over Gigabit.
Excellent shielding effect, suitable for installation in medical facilities, mechanical rooms and OA rooms where EMI measures are required.
The outer shell of the cable is made of flame-retardant material that is comparable to the "JIS C 3005" and is not likely to cause burning.
Conforms to ISO/IEC 11801 Class F Class F (Cat7) compliant only with the cable. This product uses RJ-45 plug.
Environmentally friendly product complies with the EU "RoHS Directive (restriction on use of harmful substances on electrical and electronics)
This product meets more than one of our own environmental certification standards and displays the "THINK ECOLOGY" mark.
We are committed to environmental protection, and the packaging container of the product is made up of only paper, cardboard and polybag.
