Mini Timer Switch Delay Relay, 1 to 20min, 12V/12A, for Car Daylights

Description

• Compact Design: This mini timer switch is a compact and versatile time relay kit suitable for car daylights and other applications.
• Adjustable Timing: The timer can be set from 1 second up to 1200 seconds (20 minutes), allowing precise control over timing.
• Voltage Rating: Rated for 12V DC and up to 12A current, making it suitable for automotive and low-voltage applications.
• Delay Function: Offers a delay-on function, enabling delayed activation after the set time elapses.
• Easy Installation: Straightforward kit design allows for hassle-free installation and integration into various projects.

Item Description:
Wiring:
Red wire - to contact switch 12V+
Black wire to - ground - 12V-
Two white wires - in parallel wiringTime relay with accuracy from 1 to 1200 seconds.
Dimensions:
Length - 40 mm
Width - 27 mm
Height - 21 mmPower supply: 12V DC - Has protection against reverse supply voltage.
12V+ red wire
12V- black WireOutput:
Normally open contact - NO - 20A/12V - wired with two white wires
Normally closed contact - NC -10A/12V - not soldered to front lights switchTime is adjusted by trimmer.

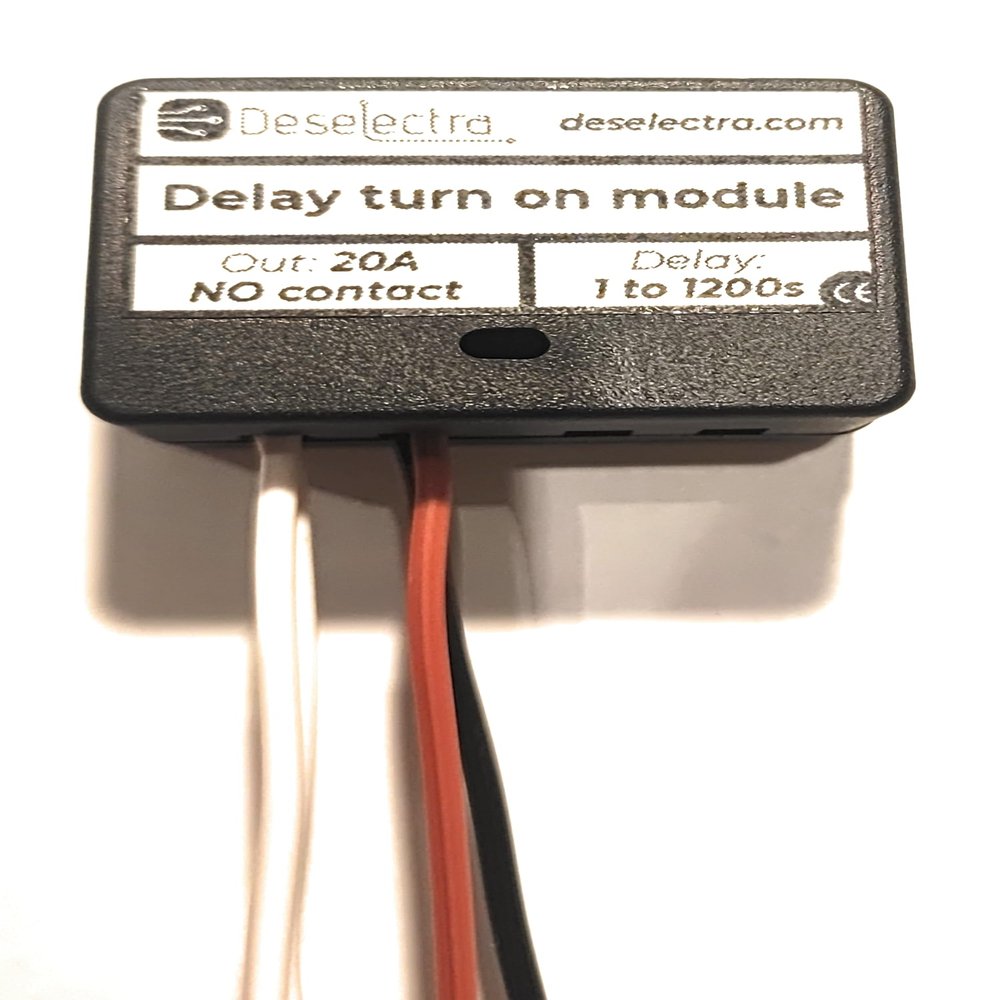

Principle of work: When power is on, the delay time starts, the LED diode lights. When the set time ends, the relay is activated, and output NO contact is closed, NC contact is open until the power is cut off. By restarting power supply - the cycle repeats. The device has a plastic box, as seen in the picture.
It can be used, for example, for the delay on of car lights. When the ignition is started - the timer will wait (1-20/ 150 / 240 / 480 / 1200 secs) and then will start the front lights to save the car battery. When the ignition is off - the lights will cut off immediately. The timer needs to receive 12V from the contact key, and the output should be wired to the front lights switch.
Package contents:
1. Mini Time Relay
2. Instruction for use and wiring diagram.
