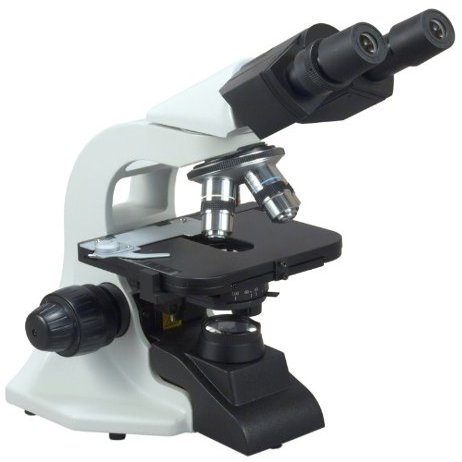

OMAX 40X-1500X Brightfield and Darkfield Binocular Compound Microscope

Description

• Total Magnification: 40X, 60X, 100X, 150X, 400X, 600X, 1000X and 1500X; Eyepieces: A pair of widefield 10X/18 A pair of widefield 15X/11; Objectives: Achromatic DIN standard 4X, 10X, 40X (spring), 100X (spring, oil) (40X and 100X specially designed for both brightfield and darkfield with an add-on funnel stop); Viewing Head: Binocular 30 degrees inclined 360degrees; rotatable Interpupillary distance: 55 - 75 mm Diopter ring on left eyepiece tube
• Total Magnification: 40X, 60X, 100X, 150X, 400X, 600X, 1000X and 1500X; Eyepieces: A pair of widefield 10X/18 A pair of widefield 15X/11; Objectives: Achromatic DIN standard 4X, 10X, 40X (spring), 100X (spring, oil) (40X and 100X specially designed for both brightfield and darkfield with an add-on funnel stop); Viewing Head: Binocular 30 degrees inclined 360degrees; rotatable Interpupillary distance: 55 - 75 mm Diopter ring on left eyepiece tube
• Total Magnification: 40X, 60X, 100X, 150X, 400X, 600X, 1000X and 1500X; Eyepieces: A pair of widefield 10X/18 A pair of widefield 15X/11; Objectives: Achromatic DIN standard 4X, 10X, 40X (spring), 100X (spring, oil) (40X and 100X specially designed for both brightfield and darkfield with an add-on funnel stop); Viewing Head: Binocular 30 degrees inclined 360degrees; rotatable Interpupillary distance: 55 - 75 mm Diopter ring on left eyepiece tube
• Nosepiece: Revolving, quadruple; Stage: Double-layer mechanical stage, range 40 mm x 78 mm, dimension 156 mm X 135mm; Condenser: Brightfield: immersion Abbe NA1.25 w/ iris diaphragm and color filter holder Darkfield:immersion NA1.36-1.25, with a funnel stop for objective Condenser focus control lever for quick adjustment
• Aperture Diaphragm: Iris diaphragm, attached on the condenser; Focusing Mechanism: Coaxial coarse and fine focusing knobs on left side. Fine focusing knob on right side. Tool-free tension adjustment
• Illumination: Transmitted, 3W LED light (equivalent to 30W halogen); Variable intensity; Power Supply: 100-240V, 50/60Hz, 0.5A
• 5-year warranty against manufacturing defects

This versatile microscope is designed for professionals. The M92BDL2 microscope is equipped with 10X and 15X eyepieces, and four high quality DIN standard objectives for brightfield and darkfield observation. 3W LED light provide safe and bright illumination. A darkfield condenser is included for live or low contrast speimen observation. Easy to switch between darkfield and brightfield.
