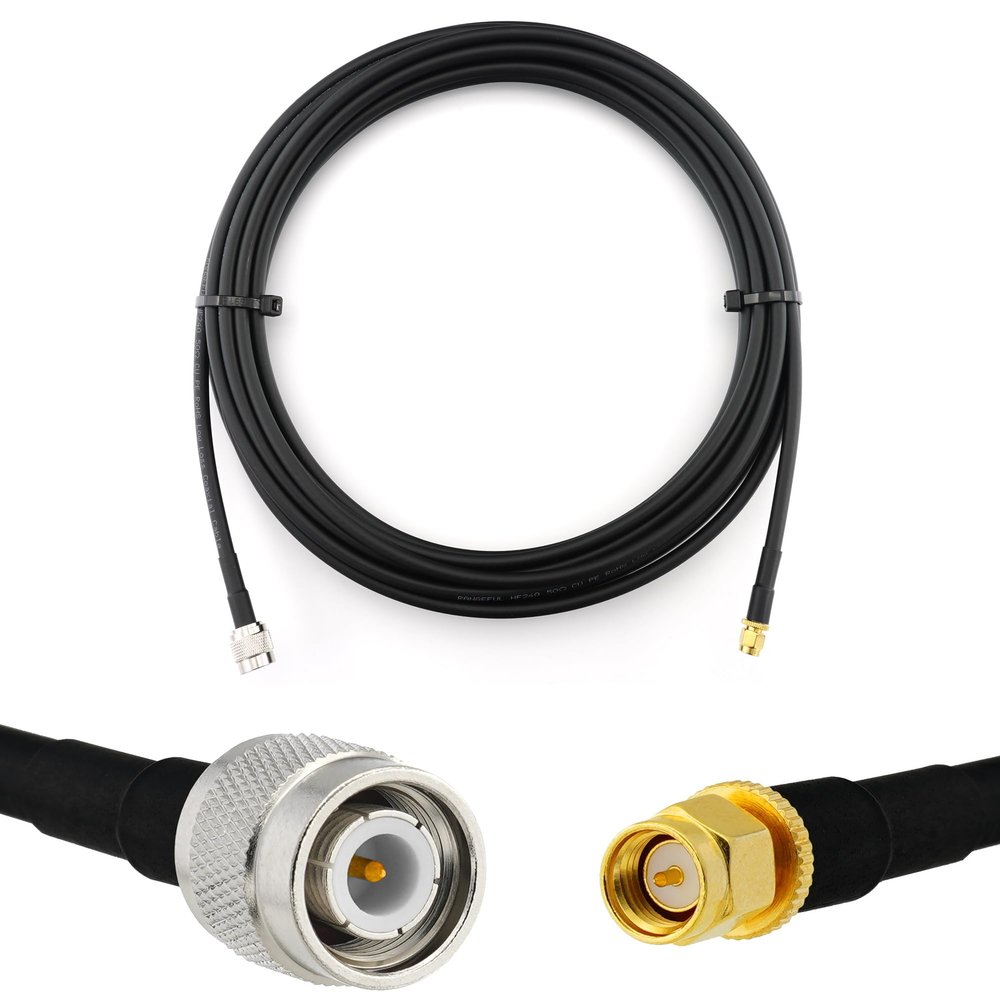

RANGEFUL 10m TNC Male to SMA Male Coaxial Cable HF-240 Coax Bare Copper Low Loss Coax 50 Ohm PVC Jacket 0.3m 0.5m 1m 2m 3m 5m 7m 10m 12m 15m

Description

• Indoor/Outdoor use TNC Male to SMA Male black extension cable 10m UV-resistant, Waterproof and Frostproof with PVC jacket.
• Solid Copper Conductor Copper conductor and tinned copper braid shield provide best-in-class data transmission with minimal attenuation.
• Double-wall shrink tubing Additional adhesive layer for better protection of connectors from external environment.
• Made in the EU The connectors are soldered with silver-added solder for best contact and long life. Each cable is tested before shipment.

SMA Male to TNC Male Low Loss Indoor/Outdoor HF240 Semi-flexible Coaxial Cable
Double Shielded with Black PVC Jacket
Length: 10 meters (32.8 ft) Application
Widely used with CB radio, HAM radio Antennas, FM radio, Amateur radio, FRS GMRS MURS radio, Public radio scanner, various RF devices, SWR meters and Testing equipment, etc. Features
Indoor/Outdoor use. UV-protected and Waterproof black PVC Jacket.
Solid Copper Conductor and Tinned Copper Braided Shield best-in-class data transmission with minimal attenuation.
Double-wall shrink tubing with adhesive layer for better protection of connectors from external environment.
Assembled in EU, fully tested and packed. Full compliance with European standards CE, RoHS, REACH, UL 94.
Package includes
1 piece of 10m (32.8ft) TNC-Male to SMA-Male Extension Cable
Connector 1: TNC-Male
Connector 2: SMA-Male
Specifications
Cable Type: HF240 Bare Copper with PVC Jacket
Center Conductor Type: Solid Copper (1 Strand)
Impedance: 50 Ohm
Frequency Range: DC - 6GHz
Cutoff Frequency: 31 Ghz
V.S.W.R: 2
Operating voltage: 1500Vrms
Input Power (Peak): 2.5 KW
Shielding Effectiveness: >90dB
Capacitance: 83 pF/m
Dielectric Type: PE
Jacket Material: PVC
No. of Shields: 2 (Aluminium foil + Tinned Copper Braid)
Operating Temperature: -35 to +80 deg C
Mechanical Specifications
Diameter: 6.10mm
Inner Conductor: 1.42mm
Dielectric: 2.90mm
Second Shield: 3.95mm
Bending Radius: 20mm
Attenuation dB/100m:
900Mhz: 24.8
1800Mhz: 35.6
2500Mhz: 42.4
5800Mhz: 66.8
