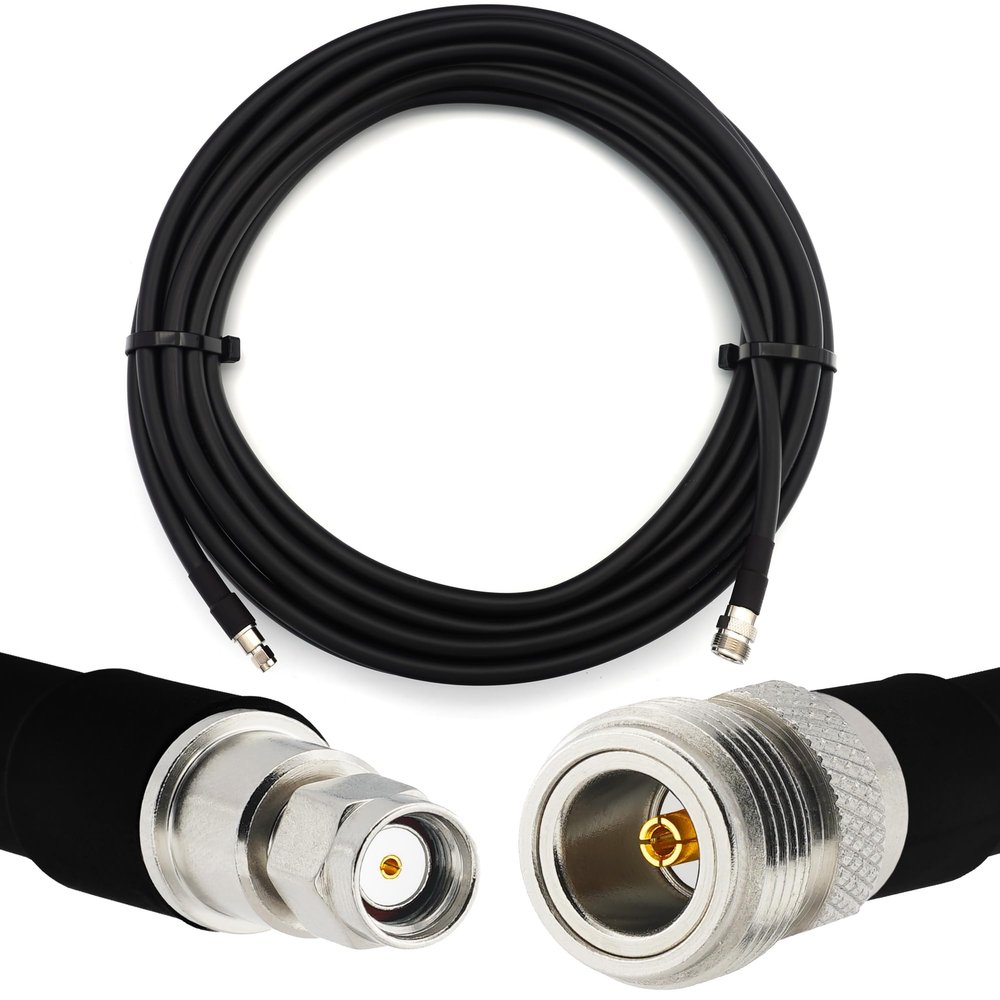

RANGEFUL 7m RP-SMA Male to N Female Coaxial Cable HF-400 Flexible Extension Coax 50 Ohm (LMR-400-UF Equivalent) 1m 2m 3m 5m 7m 10m 12m 15m 20m 25m 30m

Description

• Indoor/Outdoor use UV-protected Waterproof Black Non-contaminating PVC jacket.
• Performance Pure copper conductor and tinned copper braid shield provide best-in-class data transmission with minimal attenuation and exceptional flexibility.
• Double-wall shrink tubing Additional adhesive layer for better protection of connectors from external environment.
• Made in the EU The connectors are soldered with silver-added solder for best contact and long life. Each cable is tested before shipment. Full compliance with European standards CE, RoHS, CPR Eca.

RP-SMA Male to N Female Low Loss Indoor/Outdoor HF400 UF Flexible Coaxial Cable
Double Shielded with Black Non-contaminating PVC Jacket
Length: 7 meters (23 ft) Application
Widely used with Antennas, WiFi routers, WLAN modems, various RF wireless LAN devices, WiFi signal boosters and Range extenders etc. Features
Indoor/Outdoor use. UV-protected and Waterproof black PVC jacket.
Pure Copper Stranded Conductor and Tinned Copper Braided Shield ensures best-in-class data transmission with minimal attenuation and exceptional flexibility.
Double-wall shrink tubing with adhesive layer for better protection of connectors from external environment.
Assembled in EU, fully tested and packed. Full compliance with European standards CE, RoHS, CPR Eca.
Package includes
1 piece of 7m (23ft) RP-SMA Male to N Female Extension Cable
Connector 1: RP-SMA Male
Connector 2: N Female
Specifications
Cable Type: HF400 Flexible (LMR-400-UF equivalent) with PVC jacket
Center Conductor Type: Pure Copper (7 x 0,95 strands)
Impedance: 50 Ohm
Frequency Range: DC - 11GHz
Cutoff Frequency: 31 Ghz
V.S.W.R: 2
Shielding Effectiveness: >90dB
Capacitance: 80 pF/m
Dielectric Type: PE
Jacket Material: PVC
No. of Shields: 2 (Aluminium foil + Tinned Copper Braid)
Operating Temperature: -30 to +70 deg C
Mechanical Specifications
Diameter: 10.30mm
Inner Conductor: 2.75mm
Dielectric: 7.25mm
Dielectric: 7.95mm
Bending Radius: 100mm
Attenuation dB/100m:
900Mhz: 13.2
1800Mhz: 19.3
2500Mhz: 23.3
5800Mhz: 37.7
