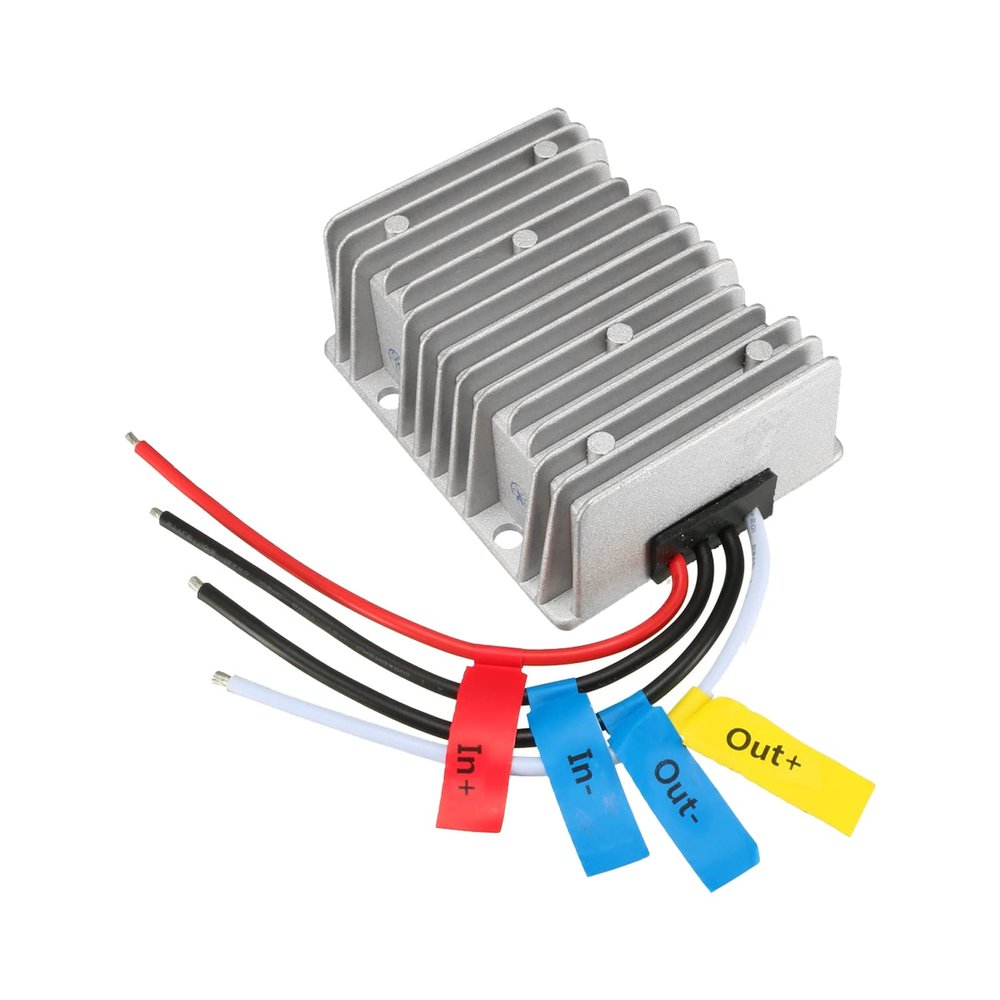

Rebower DC to DC Converter Regulator Waterproof Convert Transformer, [for Trucks Cars Ships] - DC 48V(38V-60V) Step-Up to DC 24V 22A 528W/Silver Tone Black

Description

• [Good Feature]: 100% full power stable current output, non-isolated module. Low power consumption, high efficiency, and high reliability. With safety protection, after over-current, over-voltage, over-temperature, overload, and short circuit, the voltage conversion regulator will automatically recover when the equipment returns to normal operation. The transmission efficiency can reach up to 95%, the heat generation is low, and the performance is stable.
• [Size]: Total Size: 100*80*39mm(L*W*H); Fixing Hole Diameter: 5mm(0.2 inch); Hole Center Diameter: 65mm; Input Rated Voltage: DC 48V; Input Voltage Range: 38-60V DC; Output voltage: DC24V 22A; Output Rated Power: 528W; Efficiency: 96% (half load); 94% (full load); Output Peak Power: 660W; Voltage Regulation: Less Than 1%; Load Regulation: Less Than 2%; Ripple(full load test): Less Than 50mV; No Load Current: 25mA
• [Wide Application]: The DC converter regulator is a reliable power transformer. It has the characteristics of large input voltage, low power consumption, high efficiency, and high reliability. Widely used in industrial, automotive, instrumentation, communication, and civil fields, such as golf carts, forklifts, cars, trucks, motors, communications, ships, yachts, solar energy systems, wind power generation systems, etc.
• [Material]: Die-cast aluminum shell, epoxy potting, cooling by free air convection, shock-proof and moisture-proof. Waterproof grade IP68, small in size, and lightweight, lifespan can reach 100,000 hours.
• [Tips]: The input voltage should not exceed the fluctuation range that the converter can withstand, and it cannot be used for a long time under MAX.

About the product:
The DC converter regulator is a reliable power transformer. Widely used in industrial, automotive, instrumentation, communication, and civil fields, such as golf carts, forklifts, cars, trucks, motors, communications, ships, yachts, solar energy systems, wind power generation systems, etc.

Good choice for you:
1. Die-cast aluminum shell, epoxy potting, cooling by free air convection, shock-proof and moisture-proof. Waterproof grade IP68, small size, and lightweight, lifespan can reach 100,000 hours.
2. 100% full power stable current output, non-isolated module. Low power consumption, high efficiency, and high reliability. With safety protection, after over-current, over-voltage, over-temperature, overload, and short circuit, the voltage conversion regulator will automatically recover when the equipment returns to normal operation.
3. In industrial grade DC 12V to DC 24V step-up converter, the transmission efficiency can reach up to 95%, the heat generation is low, and the performance is stable.

Specification:
Input Rated Voltage: DC 48V
Input Voltage Range: 38-60V DC
Output voltage: DC24V 22A
Output Rated Power: 528W
Efficiency: 96% (half load); 94% (full load)
Output Peak Power: 660W
Voltage Regulation: Less Than 1%
Load Regulation: Less Than 2%
Ripple(full load test): Less Than 50mV
No Load Current: 25mA
Total Size: 100*80*39mm(L*W*H)
Fixing Hole Diameter: 5mm(0.2 inch)
Hole Center Diameter: 65mm
Package included: 1 x DC 48V to DC24V 22A Voltage Converter Regulator

Easy to install:
The back of the product is marked with positive and negative poles, input and output connections, and the positive and negative poles cannot be connected in reverse.

Tips:
The input voltage should not exceed the fluctuation range that the converter can withstand, and it cannot be used for a long time under MAX.
