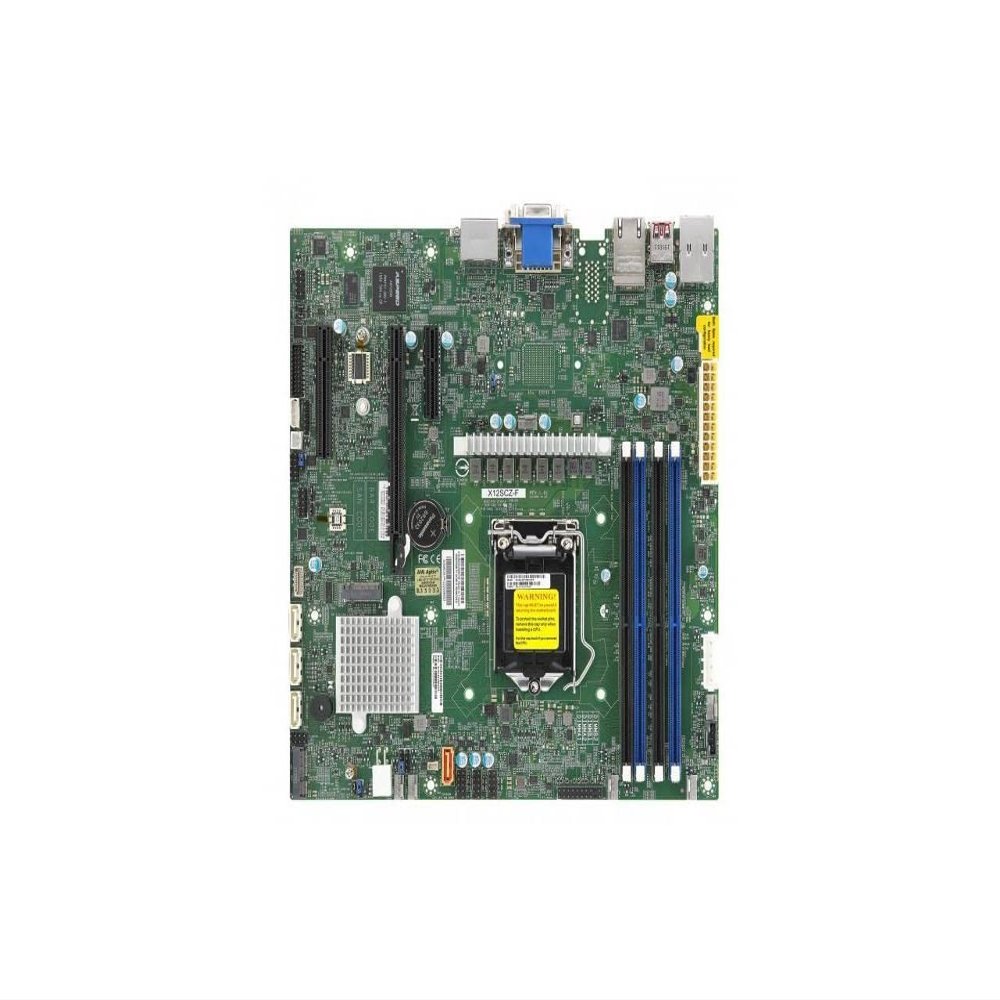

SUPERMICRO MBD-X12SCZ-F-O Micro-ATX Server Motherboard LGA 1200 Intel W480E

Description

• 11th/10th Generation Intel Core i9/Core i7/Core i5/Core i3 Processor, Intel Xeon W-1200 Processors Single Socket LGA-1200 (Socket H5) supported, CPU TDP supports Up to 125W TDP
• Single LAN with Intel PHY I219LM LAN controller Single LAN with Intel Ethernet Controller I210-AT
• Up to 128GB Unbuffered ECC/non-ECC UDIMM, DDR4-2933MHz, in 4 DIMM slots
• 1 PCIe 3.0 x16, 1 PCIe 3.0 x4 (in x8 slot), 1 PCIe 3.0 x4 1 M.2 M-Key SATA/PCIe 3.0 x4, 2280/22110 1 M.2 E-Key CNVi/PCIe 3.0 x1, 2230
• Intel W480E controller for 4 SATA3 (6 Gbps) ports; RAID 0,1,5,10

Specifications Mfr Part Number: MBD-X12SCZ-F-O Model: X12SCZ-F Form Factor: microATX, 9.6" x 9.6" (24.38cm x 24.38cm) Processor/Cache: CPU: 10th Generation Intel Core i9/Core i7/Core i5/Core i3/Pentium/Celeron Processor, Intel Xeon W-1200 Processors; Single Socket LGA-1200 (Socket H5) supported, CPU TDP support Up to 125W TDP; A graphic integrated CPU is required to have onboard video from the DVI and DP ports Cores: Up to 10 Cores System Memory: Memory Capacity : Up to 128GB Unbuffered ECC/non-ECC UDIMM, DDR4-2933MHz, in 4 DIMM slots Memory Type : 2933/2666/2400/2133MHz DIMM Sizes: 4GB, 8GB, 16GB, 32GB Memory Voltage: 1.2V Error Detection: Corrects single-bit errors; Detects double-bit errors (using EC memory) On-Board Devices: Chipset: Intel W480 SATA: Intel W480 controller for 4 SATA3 (6 Gbps) ports; RAID 0,1,5,10 IPMI: ASPEED AST2500 Network Controllers: - Single LAN with Intel PHY I219LM LAN controller - Single LAN with Intel Ethernet Controller I210-AT Audio: ALC 888S HD Audio Graphics: Aspeed AST2500 BMC, Intel HD Graphics Input/ Output: SATA: 4 SATA3 (6 Gbps) ports LAN : 2 RJ45 Gigabit Ethernet LAN ports USB: 6 USB 2.0 ports (6 via headers); 6 USB 3.2 Gen2 ports (4 Rear Type A, 2 via headers) Video Output: 1 VGA D-Sub Connector port, 2 DP++(Dual-Mode DisplayPort) ports, 1 DVI - D port Serial Port / Header: 2 COM Ports (1 header) TPM: TPM Header & Chip both Expansion Slots: PCI-Express : - 1 PCI-E 3.0 x16 - 1 PCI-E 3.0 x4 (in x8 slot) - 1 PCI-E 3.0 x4 M.2 : - 1 M.2 M-Key SATA/PCI-E 3.0 x4, 2280/22110 - 1 M.2 E-Key CNVi/PCI-E 3.0 x1, 2230 System BIOS: BIOS Type: AMI UEFI BIOS Features: ACPI 6.1; SMBIOS 3.1; PCI FW 3.0; UEFI 2.6; RTC (Real Time Clock) Wakeup Management: Software: AMT, IPMI (Intelligent Platform Man
