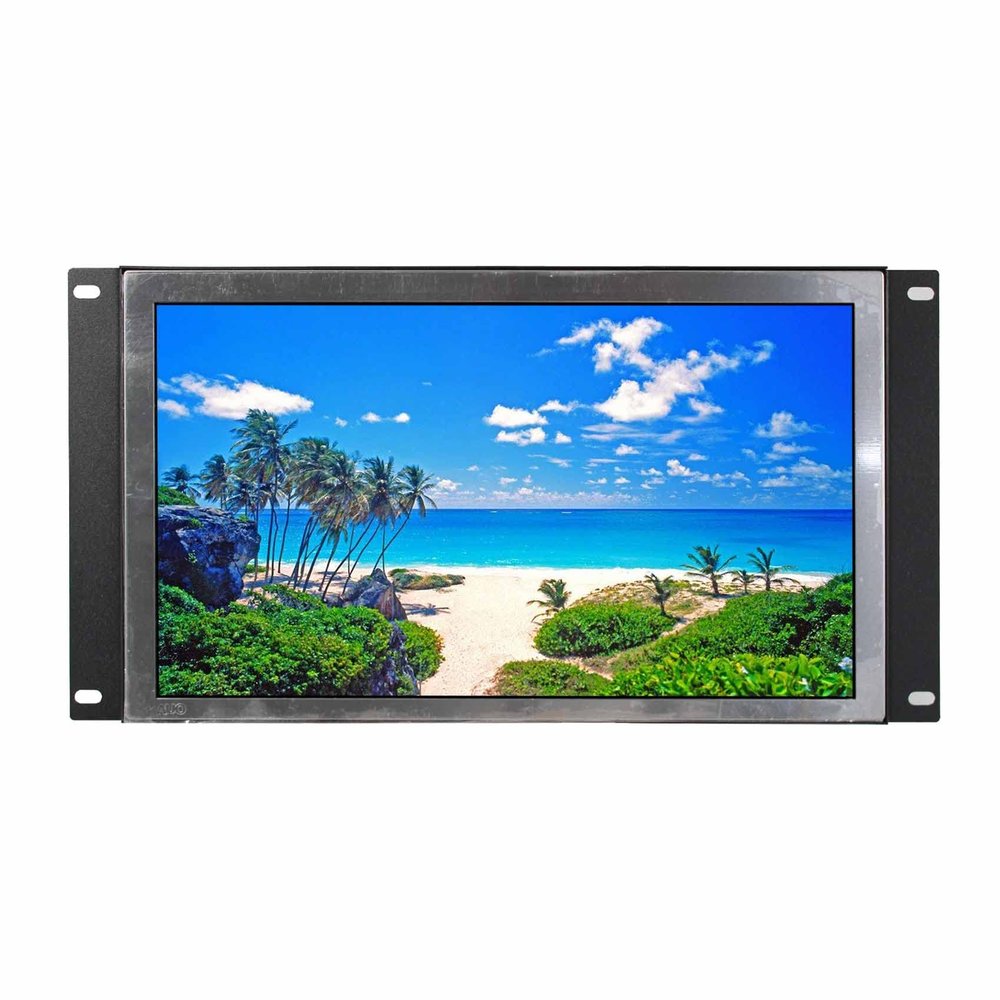

VSDISPLAY 11.6 Inch 11.6'' A116XW02-1000 1366x768 LCD Screen 1000nits Daylight Viewable High Brightness Panel with DVI VGA Audio Controller 68676,for DIY Gaming Monitor/Industrial

Description

• Specification11.6" A116XW02-1000 1366x768 LCD screen with VGA DVI audio driver board;Aspect ratio 16:9
• Advantage11.6 inch High brightness LCD display screen 1000 cd/m (Typ.);Support /DVI/VGA video input,fit for DIY gaming monitor,industrial monitor screen
• Easy to UseThe LCD screen comes with metal case,the board and cable is connected,it's more convenient to use
• Packing List1 11.6" 1366x768 1000nit brightness LCD screen with DVI VGA LCD controller board(Help to noticed that there is no power supply in the package,pls prepare by yourself)
• ServiceAll the products are tested before package and shipment,if any problem of product,please feel free to contact us

LCD Controller Board:
DVI VGA Audio LCD Board Work for LVDS Interface LCD Screen
Input Power Adapter: 12Vdc More than 2A.
Come In Standby Model When Not Input Signal
Standby Model <1W
Video Input:DVI VGA
Audio Output: Speaker Connector
OSD: Brightness Contrast Auto Language And So On
Language: English French German Spanish Italian And So On
Board Size: 125mm x 58mm x 17mm
11.6" A116XW02-1000 1366X768 LCD Screen:
Display Mode TN, Normally White, Transmissive
Resolution 1366(RGB)768
Outline Size 322 17020(WHD)mm
Display Area 256.125144(WH)mm
Brightness 1000 cd/m (Typ.)
Contrast Ratio 700:1 (Typ.) (TM)
Viewing Angle 60/60/35/55 (Typ.)(CR10) [Left / Right / Up / Down]
Signal Interface LVDS (1 ch, 6/8-bit) , 30 pins , Connector
Backlight WLED
Input Voltage 3.3V (Typ.)

Packing list:
1 11.6" 1366x768 1000nit Brightness LCD Screen with DVI VGA LCD Controller Board
(Help to notice that there is no power supply in the package,please prepare by yourself)
