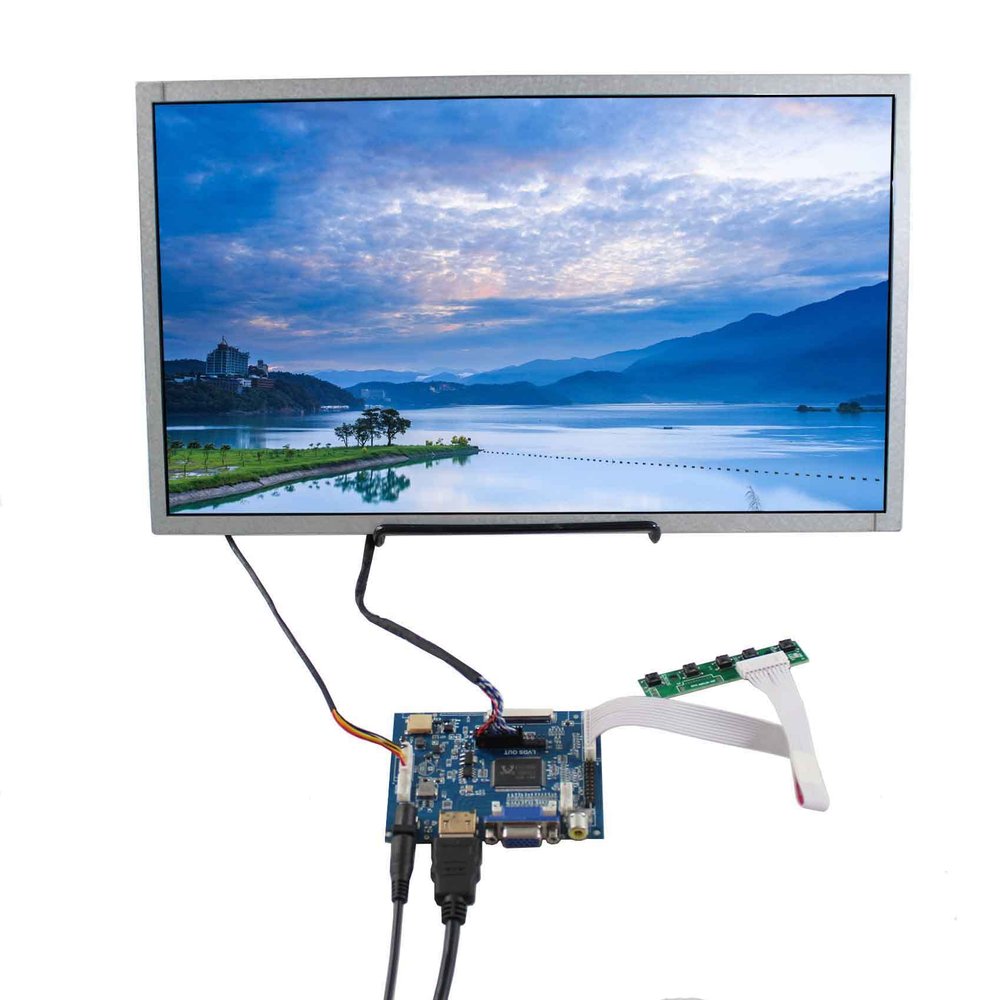

VSDISPLAY 15.6 Inch LCD Screen 15.6 AC156GA01 1366x768 with VGA 2AV LCD Board VS-TY2662V1-99

Description

• Specification15.6 inch AC156GA01 1366X768 LCD screen with /VGA/AV LCD driver board;brightness:450 cd/m (Typ.);contrast ratio:600:1 (Typ.) (TM)
• Size DetailsOutline size of LCD:363.8215.911.6 (HVD)mm;active area:344.232193.536(HV)mm;16:9 ratio aspect LCD display panel
• Multiple InterfaceSupport /VGA/AV video input
• Packing List1 VGA AV LCD Controller Board VS-TY2662V1-99;1x 15.6inch AC156GA01 1366X768 LCD Screen;1 LVDS Cable;1 Backlight Cable ;1 Keyboard With Cable
• ServiceAll the products are tested before package and shipment,if any problem of product,please feel free to contact us

LCD Controller Board:
VGA 2AV LCD Board Work for LVDS Interface LCD Screen
50Pin TTL Connector for 7inch~10.1inch LCD Screen
Input Power Adapter:12Vdc More than 2A
Come In Standby Model When Not Input Signal
Standby Model <1W
Video Input: VGA AV1 AV2
Reversing: Support Automatically Switch To AV2 When Connector ACC to 12V
OSD: Brightness Contrast Auto Language And So On
Language: English French German Spanish Italian And So On
Board Size:91mm x 66mm x 12mm

15.6" AC156GA01 1366X768 LCD Screen:
Display Mode TN, Normally White, Transmissive
Resolution:1366(RGB)768
Outline Size:363.8 215.911.6 (HVD)
Active Area:344.232 193.536(HV)
Brightness:450 cd/m (Typ.)
Contrast Ratio:600:1 (Typ.) (TM)
Viewing Angle:80/80/80/70 (Typ.)(CR10) [Left / Right / Up / Down]
Signal Interface Parallel LVDS (1 ch, 8-bit),20 pins
Backlight WLED
Input Voltage 3.3V (Typ.)

Packing list :
1 VGA AV LCD Controller Board VS-TY2662V1-99
1x 15.6inch AC156GA01 1366X768 LCD Screen
1 LVDS Cable
1 Backlight Cable
1 Keyboard With Cable
(Help to notice that there is no power supply in the package,please prepare by yourself)
