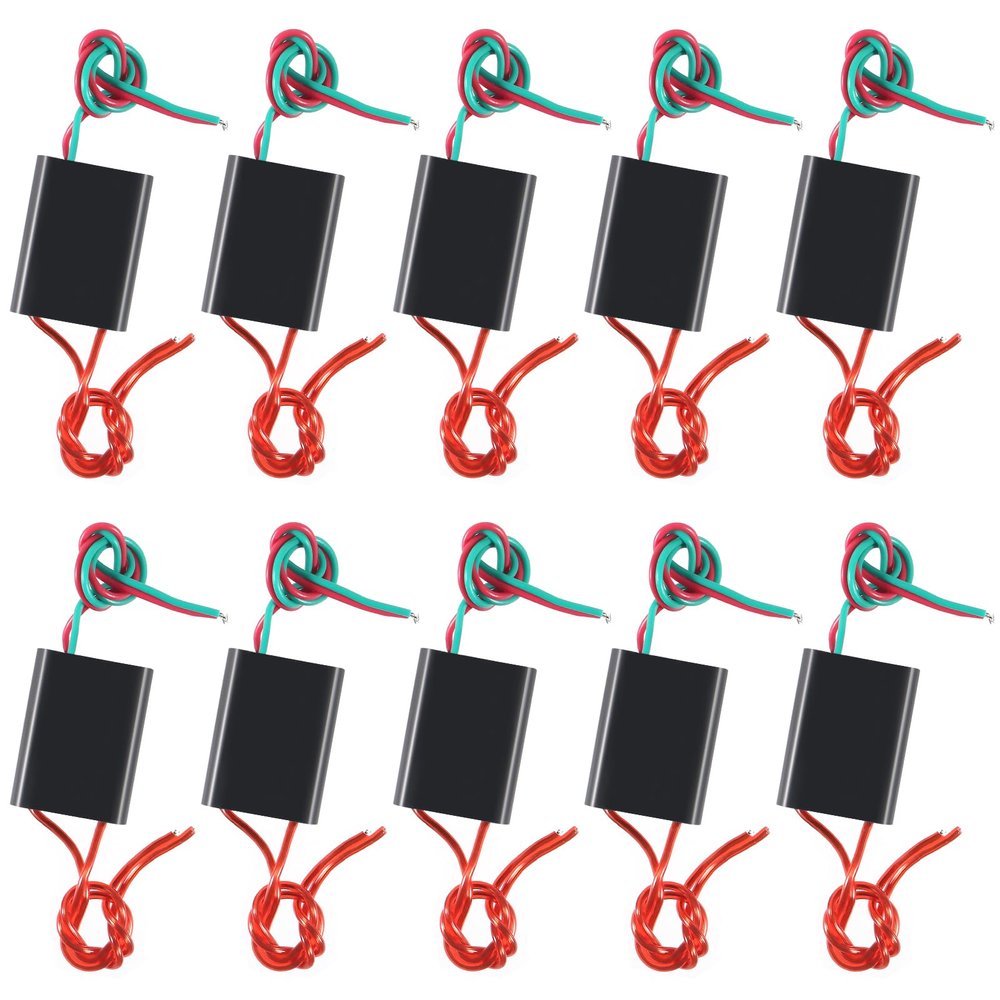

XIITIA 10pcs High Voltage Generator DC 3.6V 1.5A to 20KV 20000V Boost Step-up Power Module High Voltage Transformer

Description

• The type of pulse current Output voltage: 20kv (Please pay attention to safety),Input Output power cord length: 100 mm/3.94inch.
• Input the power of a single 3.7V lithium battery or two series, such as 18650 battery, idle mobile phone battery (to remove the protection board, recommended capacity above 2000mAh).
• The input voltage of the arc generator is dc 3.6-6V and output dc 20000v high voltage, input wiring: red - positive; green - negative; output wiring: the other side same color cable.
• The high voltage pulsa arc generator can generate high temperature and high frequency arc, can easily ignite combustible; With 3-6v high power, the pulsa arc generator instant ignite cigarette & paper, can work for 20 seconds continuously, and high frequency, good quality, easy to use.
• Applications: Used as high voltage generator, high voltage Igniter; Ideal for students to study electrical experiment, do science experiment, etc.

Specifications
Input Voltage: DC3.6V-6V
Input Current: 1.5A
Output Voltage: DC20KV (Please be sure to use safety when used)
Output Current: 0.05A
InputLine Length: approx. 110 mm (red is positive)
Output Cable Length: approx. 110mm
High Voltage bipolar discharge distance: 5mm
High Type: pulse current
Structure: High and low voltage integrated

Note:
The high-voltage module should avoid the use of high-voltage current without a load. Power must be set to a suitable distance to the high voltage output line, the battery capacity is proportional to the distance and the use of the high pressure arc (not a voltage as high as possible, must provide sufficient current).

Experimental testing of the arc distance from short to long. If you do not exceed the maximum arc gap current, energy is not released by high pressure, the module can be easily damaged.

Due to the performance, the internal heat is not easy, each operating time should be set within 5 seconds.
